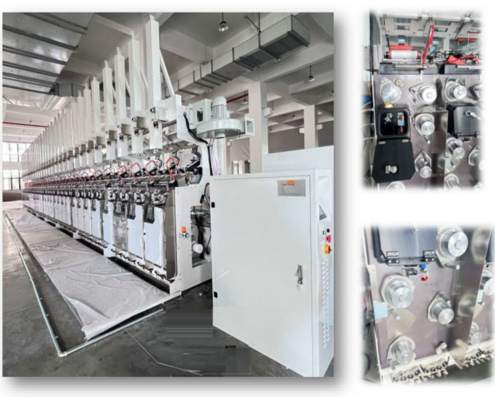

Air Texdturing Machine

Model : CMS-215C

For the products of air textured yarn (ATY) from POU. FDY or other filament yarns

Technology Parameter

• Machine Structure : Single side, Single layer, 4 spindle/section
• Spindle Gauge : 495mm
• Type of Winding : Digital winding or Precision winding
• Linear Speed : Max.1100M/Min, it depends on process parameter
• Traverse Length : 130mm-250mm (it can be changed)
• Package Shape : Straight edge or Biconical shape
• Take-up Tube : 290 mm straight cone
• Rated Power : About 6.85KW
• Yarn Count : Max.3300D
• Compressor required : 8-12 Pa
