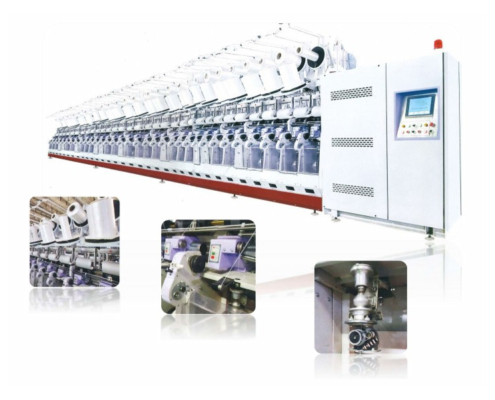

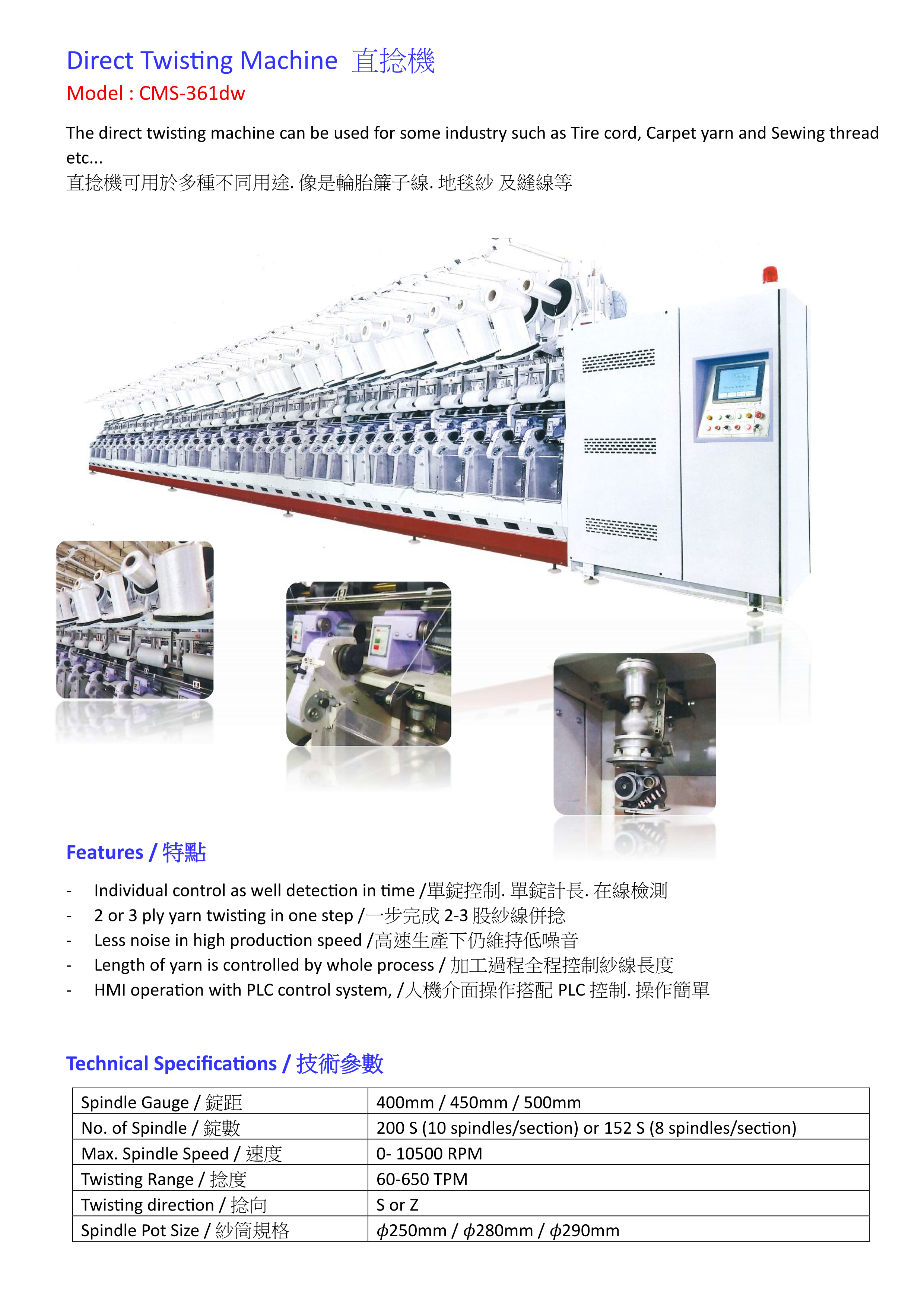

Direct Twisting Machine

Model : CMS-361dw

The direct twisting machine can be used for some industry such as Tire cord, Carpet yarn and Sewing thread etc…

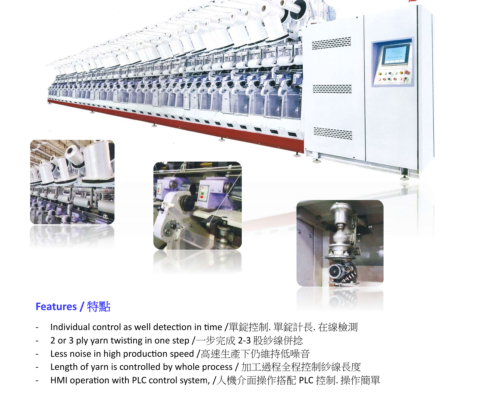

Features

• Individual control as well detection in time
• 2 or 3 ply yarn twisting in one step
• Less noise in high production speed
• Length of yarn is controlled by whole process
• HMI operation with PLC control system

Technical Specifications

• Spindle Gauge:400mm / 450mm / 500mm
• No. of Spindle:200 S (10 spindles/section) or 152 S (8 spindles/section)
• Max. Spindle Speed:0- 10500 RPM
• Twisting Range:60-650 TPM
• Twisting direction:S or Z
• Spindle Pot Size:𝜙250mm / 𝜙280mm / 𝜙290mm
